Quick Details

Specification

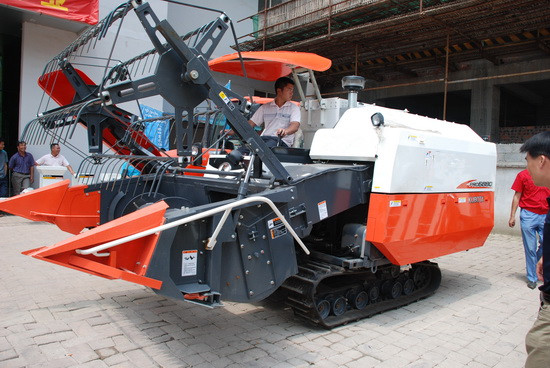

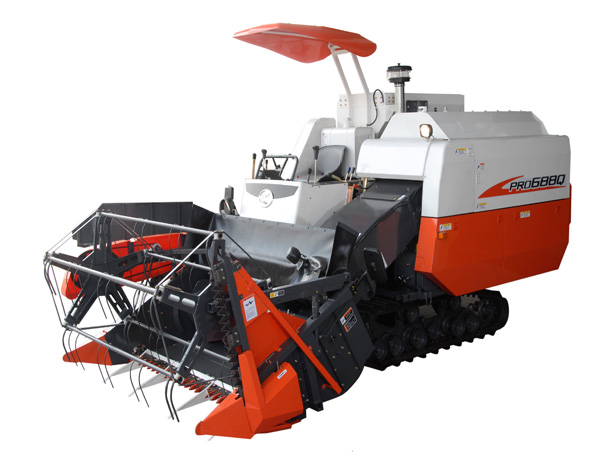

The specification of Kubota 688Q combine harvester,

Structure is self-propelled tracked common type

Size: 4860*2295*2815mm

Weigh:2780kg

Engage
Total displacement 2.434 /2434
Fuel tank capacity : 60L
Starting method: Starter motor
Battery : 12.52v
Travel unit
Track
Width grounding length (mm): 400 *1680mm

Center distance (mm)1150
The average ground pressure 20.3 ,0.21
Minimum ground clearance (mm) 275
Transmission mode: Static hydraulic continuously variable transmission

Variable speed grade: Vice of stepless variable speed three files
Turning Way:Brake change
Harvest the Ministry of Rotary Wo to the reel
Dial Wo device
Rotation diameter x width (mm):900 *1828
Transmission mode:Isokinetic
Adjusted up and down method:Hydraulic
The width of the harvest (points grass front-end interval)(mm) 2000
Cutter width (mm) 1905
Harvest a high degree of (lifting) range (mm) Cutter tip 40 or above
Lodging adaptability (degrees)Smooth cutting: less than 85 reverse cut to less than 70

Threshing Ministry
Threshing system
Axial threshing gear
Diameter *width (mm) 620 *1790
Speed 560/600
The second method of transport Spiral auger
Filter shaker winnowing three air separation]
Unloading Hasebe
Capacity (L) 420
Set by the Valley Box 2 pieces
Discharge of the way Bags
Warning lights and equipmentAnd then filtering the vertical transportation
Spiral rod grain blockage

Set box filled
Water temperature
Battery charging
Engine oil pressure
Adapt to crop
Rape, rice wheat
Operating efficiency
(Acres / hr)3 to 8 (with the crop varieties and conditions may be)
